Granite V-Frame Marble V-Frame .-lg

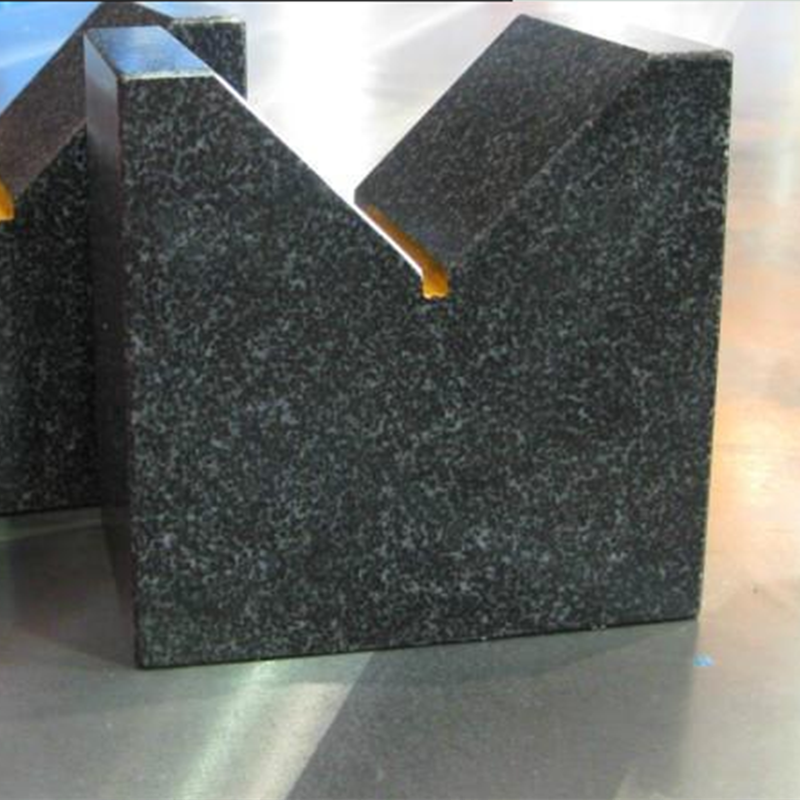

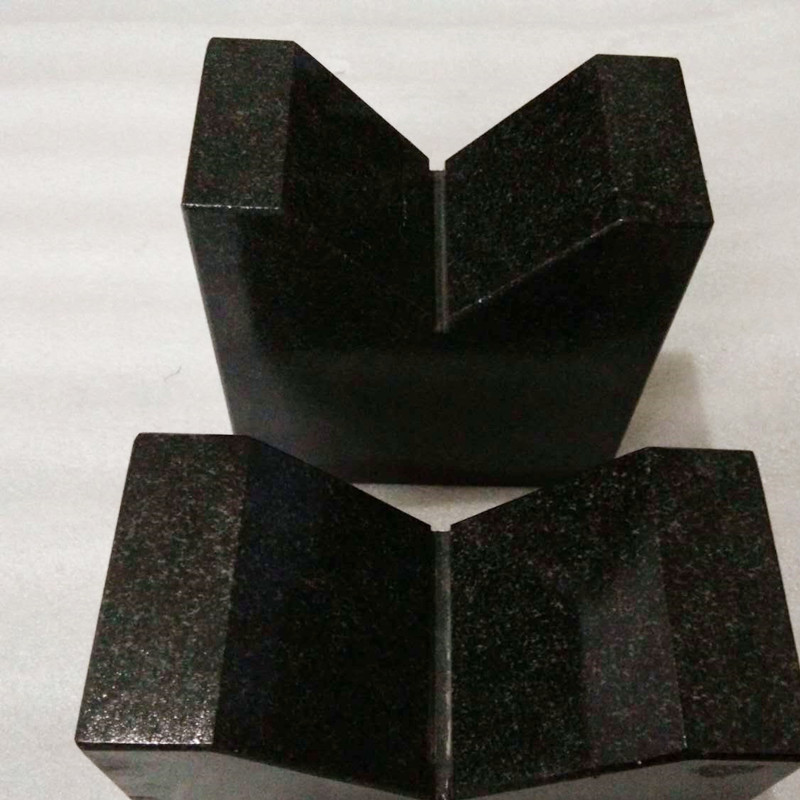

Fuleemu ya granite eringa V ekoleddwa mu "Jinan Qing" natural granite material okuyita mu mechanical processing ne manual precision grinding. Black luster, ensengekera y’enzimba ey’enjawulo, okutebenkera okulungi, amaanyi amangi, obukaluba obw’amaanyi, fuleemu ey’engeri ya granite V ng’erina ebirungi nga precision enkulu, tewali buwuka, asidi ne alkali okuziyiza, tewali magineeti, tewali kukyukakyuka, n’okuziyiza okwambala okulungi. Esaanira okwekebejja, okupima, okussaako obubonero, n’okuteeka mu kifo mu makolero g’okulongoosa n’okukola ebitundu.

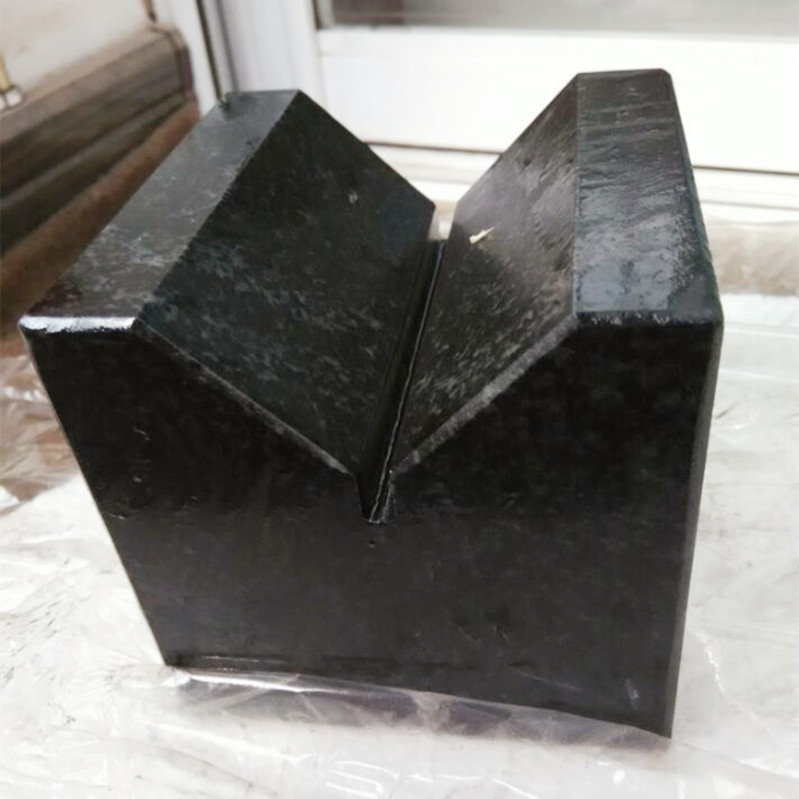

Ekintu ekipima granite V Shape Black Block .

Obutuufu bwa granite V-frame: Omutendera 000-1.

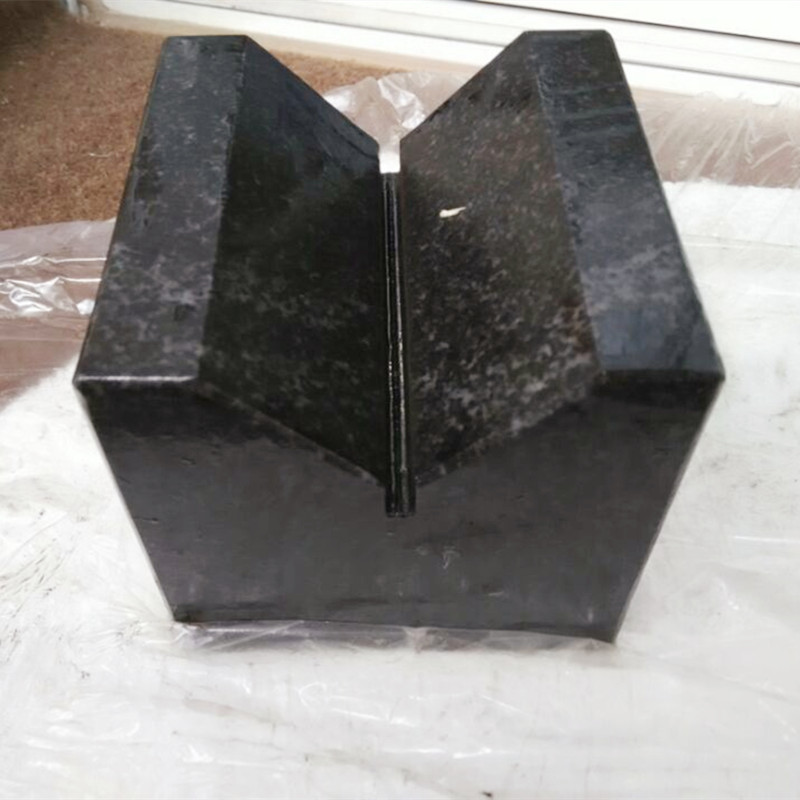

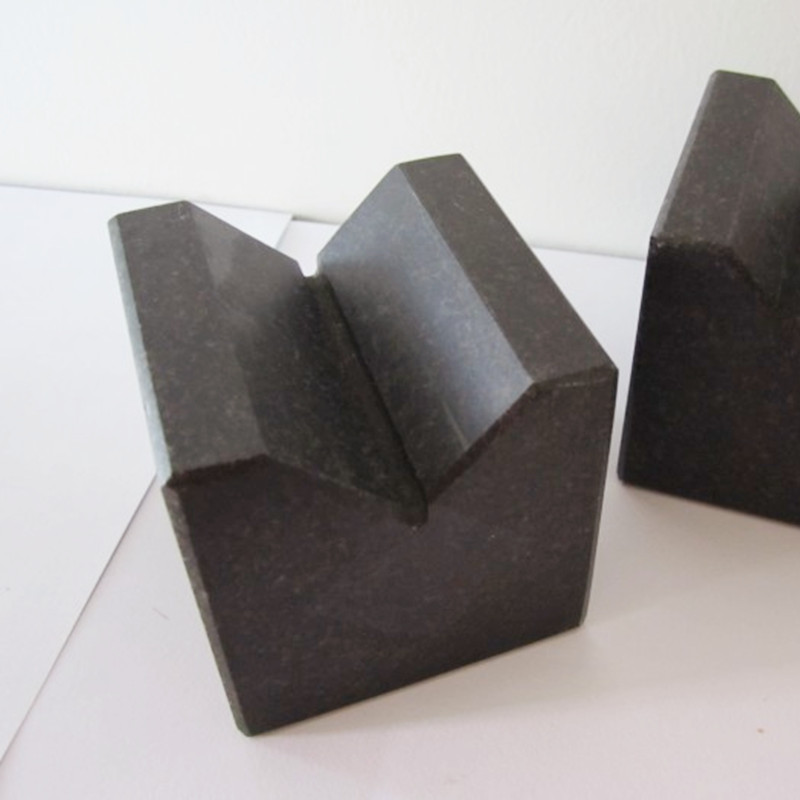

Granite V Blocks (V Frame) Okukozesebwa: Okukwatagana kw’ekikondo mu kukola ebyuma .

Mu kukola ebyuma, okukwatagana kwa shaft okutuufu kikulu nnyo okukendeeza ku kukankana, okukendeeza ku kwambala, n’okukakasa nti ebyuma ebikyukakyuka bikola bulungi. Storaen’s granite V blocks (V frames) ziwa eky’okugonjoola ekinywevu, ekituufu eky’okusoomoozebwa kuno, nga zikozesa eby’obutonde eby’amayinja ga Jinan Qing okutuusa obutuufu obutakwatagana mu mirimu gy’okukwataganya shaft mu makolero gonna —okuva ku kukola mmotoka okutuuka ku yinginiya w’eby’ennyonyi.

1. Omusingi gw’okulaganya shaft: lwaki granite V-frames zisinga .

Storaen’s granite V blocks ziwa enkizo ssatu enkulu ku shaft alignment .:

Obugumu bw’ebipimo: Jinan Qing granite (obugumu ≥70HS) yeewaanira ku mugerageranyo omutono ogw’okugaziwa kw’ebbugumu (8.3×10⁻ ⁶/°C), okukuuma obutuufu bw’okukwatagana okuyita mu kuwuubaala kw’ebbugumu (10°C–40°C). Okwawukana ku V-blocks ez’ekyuma ezigaziwa/endagaano mu ngeri etategeerekeka, fuleemu zaffe eza granite zikuuma ebikondo nga bikwatagana mu ±5μm/m, ne mu misomo egitabuguma.
Vibration Damping: Enzimba y’ejjinja ery’ekika kya granular enywa okukankana okusinga ekyuma ebitundu 60% okusinga ekyuma, ekikulu okukuuma okulaganya mu kiseera ky’okukola ebyuma eby’amaanyi. Fuleemu ya 160×160×90mm Vranite V enyweza ebikondo bya kkiro 50 ebikyukakyuka ku 3000 rpm, ekikendeeza ku nkuba y’ebikozesebwa n’obukaluba ku ngulu (RA ≤0.8μm).
Obuziyiza bw’okukulukuta: Mu butonde obuziyiza okunyogoza, amafuta, n’obunnyogovu, Storaen granite V Blocks zeetaaga okuziyiza obusagwa bwa zero —ekirungi eri embeera enkambwe ez’okukola ebyuma ng’ebyuma ebirala ebigenda bikendeera mu myezi mitono.

2. Ebigezo ebituufu ku buli kyetaago ky’okukwatagana .

Londa omutendera omutuufu ogw’obutuufu ku nkola yo .:

Grade 000 (±2μm flatness):Ekozesebwa mu kukola ebitundu by’omu bbanga, 100×100×63mm granite V frame ekwataganya titanium alloy shafts ku mutindo gwa ASME B89.3.2, okukakasa nti concentricity munda mu 5μm for jet engine rotors—critical for minimizing aerodynamic drag.
Grade 0 (±5μm flatness):Ekituukiridde ku automotive powertrain assembly, 200×200×125mm frame positions steel crankshafts ne ±0.01mm/m parallelism, ekikendeeza ku bearing wear ne 30% mu yingini ezirina amaanyi amangi.
Grade 1 (±10μm flatness):Emipiira egy’amakolero egy’awamu nga conveyor roller alignment, nga 300×300×150mm granite V block ekakasa 90° shaft perpendicularity ku bitanda by’ebyuma, okumalawo omusipi okuseerera mu layini ezipakira.

3. Enkozesa enkulu mu kukola ebyuma .

CNC Machine Setup:A Storaen Granite V frame (grade 000, 63×63×90mm) ekakasa obugolokofu bwa CNC lathe spindle shafts mu kiseera ky’okussaako, okukakasa nti amakubo g’ebikozesebwa gasigala mu ±0.005mm for precision machining of medical device components.
Gearbox Assembly:Mu kukola ebyuma ebizito, 160×160×90mm granite V block ekwataganya ebikondo bya ggiya za pulaneti okutuuka mu 8μm, ekikendeeza ku maloboozi agafuluma n’okugaziya obulamu bwa ggiya ebitundu 25% mu byuma ebizimba.
Okugezesa yingini y’omu bbanga:Fraamu zaffe ezigumira okukulukuta ziwagira ebikondo bya inconel mu kiseera ky’okugezesa obukoowu, okukuuma okulaganya okuyita mu 10,000+ load cycles awatali dimensional drift—critical for valdating engine performance wansi w’embeera ezisukkiridde.

4. Okwewaayo kwa Storaen okukwataganya obulungi .

Certified Precision: Buli granite V block ekalibwa nga ekozesa laser interferometer, nga erina satifikeeti erondoolebwa okutuuka ku GB/T 20428-2006 ne ISO 1101 standards, okukakasa nti egoberera okubala okw’omutindo okukakali.
Custom Solutions: Oyagala 500×500×200mm fuleemu nga eriko ebituli ebiteekebwa mu recessed ku layini z’okukuŋŋaanya ez’otoma? Ttiimu yaffe eya OEM etuwa dizayini ezikoleddwa ku bubwe mu wiiki 4–6, erongooseddwa ku byetaago byo eby’enjawulo eby’okulaganya shaft.
Omusingo gw’obuwangaazi: Nga guwaniriddwa ggaranti ey’emyaka 2 okulwanyisa enkyukakyuka oba enkyukakyuka mu bipimo, fuleemu zaffe eza granite V zisinga ebyuma ebirala 5X, nga biwa omuwendo gwonna ogw’okukekkereza ku nsimbi za doola 1,500+ buli kikozesebwa mu bulamu bwakyo.

Toleka shaft alignment ku chance—Trust Storaen’s granite V blocks okutuusa obutebenkevu, obutuufu, n’okuwangaala nti eby’omulembe mu kulongoosa ebyuma byetaaga. Ka kibeere nti ebyuma bya CNC bikaliridde, okukuŋŋaanya ggiya, oba okugezesa yingini z’omu bbanga, fuleemu zaffe eza granite V zikakasa nti buli kikondo kikwatagana n’okutuukiridde, okukendeeza ku budde bw’okuyimirira, okukendeeza ku kasasiro, n’okusitula omutindo gw’ebintu byo ebiwedde. Yeekenneenya fuleemu zaffe eza granite V leero era olabe enjawulo y’obutuufu obukoleddwa mu mayinja.

Granite V Blocks (V-Frame) Okulabirira: Okuyonja & Okutereka Enkola Ennungi

Okuddaabiriza okutuufu kye kisumuluzo ky’okukuuma obutuufu n’obuwangaazi bwa bbulooka zo eza granite V (V-Frames). Storaen’s premium granite V-frames, ezikoleddwa okuva mu Jinan Qing granite, zikolebwa yinginiya okusobola okuddaabiriza okutono —naye okugoberera enkola zino ezisinga obulungi zikakasa nti zisigala nga ntuufu era nga tezirina kwonooneka okumala emyaka mingi, ne mu mbeera enzibu ey’amakolero.

1. Okwoza buli lunaku: Ggyawo obucaafu mpola .

Engulu ya Granite etali ya buziba eziyiza obucaafu obusinga obungi, naye okuyonja buli kiseera kiziyiza okuzimba ebisigadde ebiyinza okukosa okukwatagana .:
Ebikozesebwa ebyetaagisa: engoye za microfiber ezigonvu, ekyuma ekiyonja ekitaliimu pH (okugeza, Storaen’s granite care solution), n’ekyuma ekikuba ebisasiro ebikakali.

Omutendera .:

Siimuula ekitundu kya V-frame n’olugoye olukalu okuggyamu enfuufu oba ebikuta by’ebyuma ebikalu —ebikulu okukuuma obuziba bwa ±2μm obw’obulooka bwa Granite V obw’omutindo gwa 000.
Dilute cleaner (1:10 n’amazzi agafumbiddwa) osiige ku lugoye olunnyogovu, woyiro oba amabala g’amazzi agayonja mpola. Tokozesangako biwunyiriza bya asidi/alkaline—bisobola okukuba ku ngulu kwa granite okumala ekiseera.
Kala bulungi n’olugoye olutaliimu bbugumu, okukakasa nti tewali bunnyogovu busigala mu V-groove ebikondo mwe bikwatagana.

PRO TIP: Ku mbeera enzito ez’okukola ebyuma, njoza oluvannyuma lwa buli ssifiiti okuziyiza obutundutundu obukuba (okugeza, aluminiyamu oxide) okukunya 320-grit grit ground surface (RA ≤0.8μm).

2. Enkola z’okutereka: Okukuuma okuva ku kugwa & okukyukakyuka kw’ebbugumu .

Teeka bulooka zo eza granite V okukuuma obutebenkevu mu bipimo n’okukuuma empenda za V-groove .:

Okutereka okw’ekiseera ekitono (≤1 week .):

Teeka ku kitanda kya kapiira ekimala okukankana (5mm thickness) ku ntebe z’omusomo ennyonjo, okukakasa nti 100mm clearance okuva mu bikozesebwa ebirala. Storaen’s 160×160×90mm V-frames, ezitowa kkiro 18, sigala mu kifo kyayo mu kifo ne mu biseera by’okusima okumpi.

Okutereka okumala ebbanga eddene (≥1 omwezi .):

Zingira mu tissue paper etaliimu asidi oba anti-static bubble wrap okukuuma obunnyogovu (Ideal RH: 40%–60%).
Teeka horizontally ku flat shelf ne foam supports wansi wa V-groove ne base, okugaba obuzito kyenkanyi okuziyiza 0.05mm/m sag eyinza okubaawo mu unsupported frames.
Kuuma ebbugumu ly’okutereka ku 20°C ±2°C—Jinan Qing Granite okugaziwa kw’ebbugumu okutono (8.3×10⁻⁶/°C) kitegeeza akabi akatono ak’okuwuguka, naye enkyukakyuka ezisukkiridde zisobola okukosa obutakyukakyuka mu kupima.

Weewale: Okuwanika oba okutereka mu nneekulungirivu, ekiyinza okuggumiza empenda za V-groove—Storaen ekola dizayini za V Granite V zonna olw’okutebenkera okw’okwebungulula, nga zirina ebifo eby’omusingi ebinywezeddwa okusobola okuteekebwa ku shelf ennywevu.

3. Okuddaabiriza Do’s & Don’ts .

Kola:

Kebera quarterly ku chips entonotono (≤0.5mm) nga okozesa 10X magnifier—Storaen egaba mu kifo resurfacing ku fuleemu ezonooneddwa, okuzzaawo flatness ku grade ezasooka.
Kozesa Storaen’s Certified Calibration Service buli mwaka okukakasa okugoberera GB/T 20428-2006, okukakasa nti granite V blocks zo zikuuma precision yazo egezesebwa mu kkolero.

Tokikola:

Suula oba kwata V-frame —ne bwe kiba nti okukuba kwa kkiro emu kuyinza okukutuka ku ludda lwa V-groove, nga kukosa okulaganya shaft okutuuka ku 15μm.
Teeka n’ebikozesebwa bya magineeti—Ekintu kya Granite ekitali kya magineeti (≤3μt) kirungi nnyo mu mbeera za magineeti, naye magineeti eziriraanyewo zisobola okusikiriza ebifunfugu ebikunya kungulu.

4. Ebifaananyi bya Storaen ebinywezeddwa mu dizayini .

Bbulooka zaffe eza Granite V zizimbibwa okusobola okwanguyirwa okuddaabiriza .:

Rounded edges: 3mm chamfers ku nsonda zonna zikendeeza ku bulabe bwa chip nga zikwata, ensonga eya bulijjo n’ebintu ebirala ebisongovu.
Anti-static coating (optional): Ku by’okukola ebyuma eby’amasannyalaze, londa V-frames ezirina 5μm conductive coating egoba obutundutundu bw’enfuufu, ekikulu ennyo okusobola okulaga obulungi shaft alignment mu cleanroom environments.
Custom storage cases: Lagira foam-lined hardwood case (efunibwa ku sayizi zonna) n’ebiyingizibwa mu CNC-cut ebikuuma V-groove ne base, okukuuma ssente z’otaddemu mu kiseera ky’entambula wakati w’ebifo.
