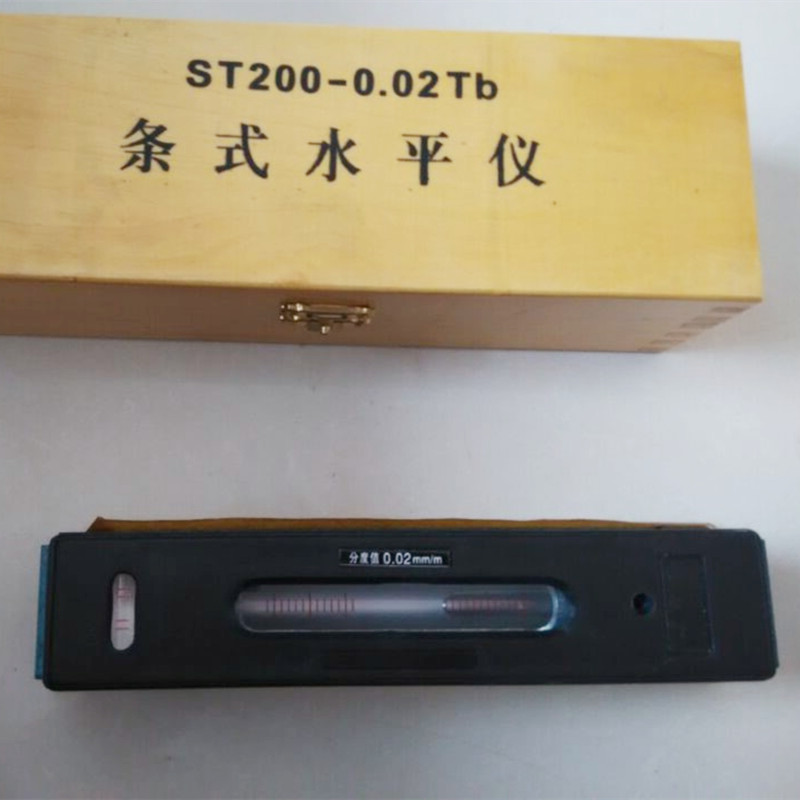

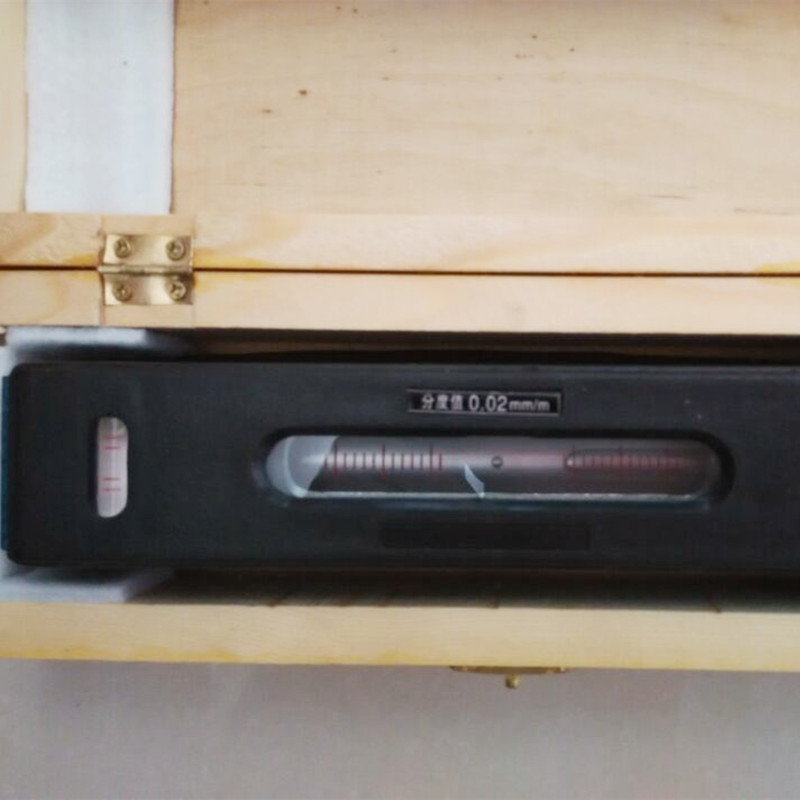

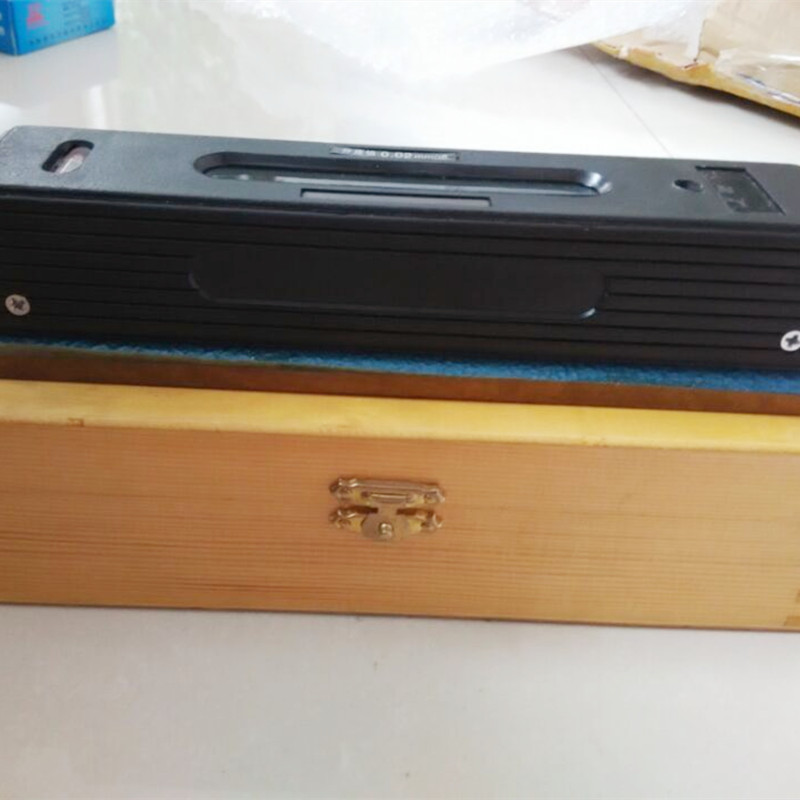

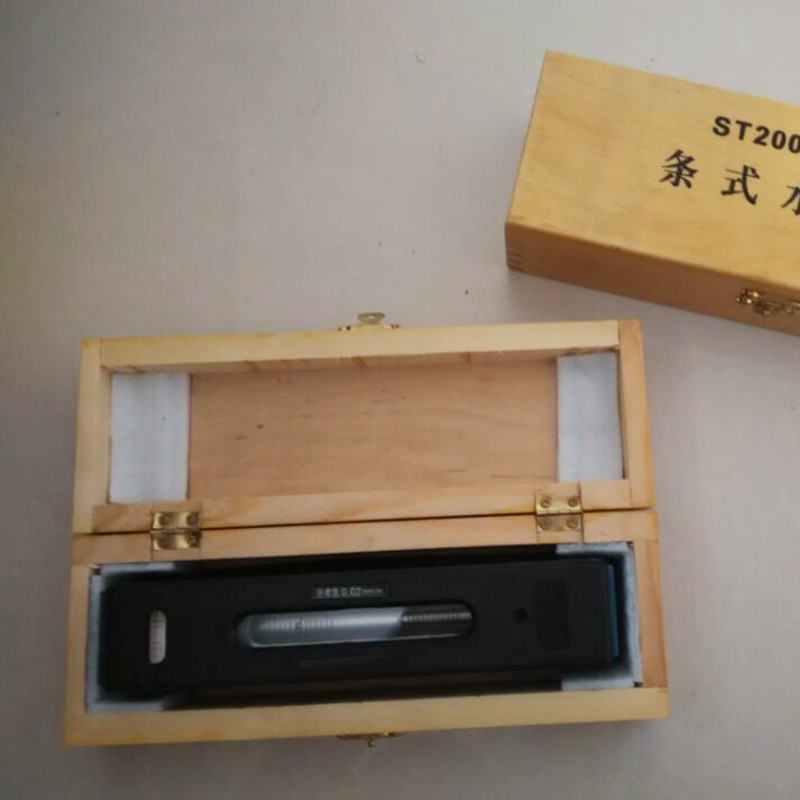

Omutendera gw’ebbaala .

• - Ekibya ekikulu ekitereezebwa 0.0002"/10 ."
• - omusingi gwa V-grooved.
• - nga balina ekidomola ky’okugezesebwa mu ngeri ey’omusalaba.
• - Omubiri ogw’ekyuma ekigumu ekigumu.
• - Bw’ogeraageranya n’emitendera egy’obutuufu egya bulijjo, omutendera guno gukoleddwa era ne gukolebwa mu mbeera esinga okubeera ennungi.
•
• Ebintu ebiraga n’okukozesa omutendera gw’ebbaala:Eby’okwegendereza eby’okukozesa omutendera gw’ebbaala .:
• 1.Nga tonnaba kupima nga olina ebbaala, ekifo eky’okupima kirina okuyonjebwa n’obwegendereza n’okusiimuula okukala okukebera oba waliwo obuzibu ng’okukunya, obusagwa, n’ebiwujjo.
• 2.Nga tonnaba kupima na ddaala lya bbaala, kebera oba ekifo kya ziro kituufu. Bwe kiba nga si kituufu, omutendera ogutereezebwa gulina okutereezebwa, era omutendera ogutali gukyukakyuka gulina okuddaabirizibwa.
• 3.Bw’opima n’omutindo gw’ebbaala, enkola y’ebbugumu erina okwewalibwa. Amazzi agali munda mu ddaala galina kinene kye gakola ku nkyukakyuka mu bbugumu. N’olwekyo, okufaayo kulina okussibwa ku nkola y’ebbugumu ly’emikono, omusana obutereevu, n’okussa obubi ku ddaala.
• 4.Mu kukozesa omutendera gw’ebbaala, okusoma kulina okukolebwa mu kifo ky’omutendera ogw’ennyiriri okukendeeza ku buzibu obuva mu parallax ku bivudde mu kupima.
•

• Ekipimo ky’ebintu .

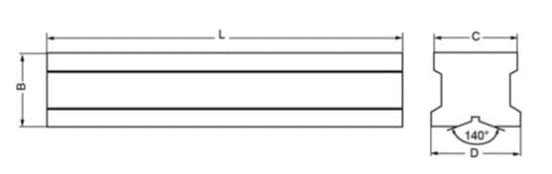

• Ebbaala Level gauge M bbaala level gauge specification MM: Obutuufu: 0.02mm/m.

Omutendera gw’ebbaala kye ki? Enjawulo enkulu okuva ku mitendera gya fuleemu .

​
Omutendera gw’ebbaala kye kimu ku bikozesebwa ebituufu, eby’obutuufu ebya linear ebikoleddwa okupima obugolokofu, okulaganya, n’okuserengeta ku bifo ebipapajjo oba ebiwanvu —ebirungi ebikozesebwa mu makolero ng’ekifo kikoma oba ssiringi ebikozesebwa (okugeza, payipu, ebyuma ebikuba ebyuma) byetaaga okwekebejjebwa. Ku Storaen, emitendera gyaffe egy’ebbaala girina omubiri ogw’ekyuma ekikaluba nga guliko omusingi ogwa V-grooved, nga gusobozesa okuteeka obulungi ku bitundu ebyetooloovu, n’ekibya kimu eky’obuwunga obutuufu okuzuula okuwuubaala okutali kwa bulijjo (nga wansi wa 0.02mm/m okukyama). Naye kyawukana kitya ku ddaala lya fuleemu? Ka tumenye enjawulo enkulu .:​

1. Design & Enzimba .​

Omutendera gwa bbaala: linear, single-axis design nga eriko ekisenge ekika kya V okuyita ku musingi (critical for gripping cylindrical objects) n’ekibya kimu oba bibiri eby’obubble (horizontal/vertical). Obuzito obutono era obutambuzibwa, bulungi nnyo mu bifo ebifunda oba ebipimo ebiri ku lugendo.​

Frame level (okugeza, precision frame level): fuleemu ya nneekulungirivu, fuleemu ey’enjuyi nnya ng’erina ebifo ebingi ebikolebwa mu kyuma (mu maaso, emabega, waggulu, wansi), nga biwagira ebipimo byombi eby’okwesimbye n’eby’okwesimbye ku nnyonyi ezipapajjo. Ebinene naye nga bikola emirimu mingi okusobola okwekebejja okuzibu, ku ngulu.​

2. Okupima Essira .​

Omutendera gw’ebbaala: gukuguse mu kukwatagana kwa ssiringi (okugeza, okukebera obugolokofu bw’ebintu ebikozesebwa mu byuma, okuteekebwako payipu) n’obuwanvu bw’ennyonyi emu. V-groove ekakasa okukwatagana okunywevu n’ebikondo ebyetooloovu, okumalawo okuseerera mu kiseera ky’okupima.​

Frame Level: Esukkulumye ku kukebera flatness multi-dimensional flatness (horizontal, vertical, squareness) ku bifo ebinene ebipapajjo nga ebyuma bases, construction frameworks, oba emmeeza ezikola embaawo. Empenda zaayo ennya ziwa ebifo eby’okujuliza ku mirimu egy’enkoona enzibu n’okukwatagana.

​
3. Precision & Application Scenarios .​

Ebikozesebwa byombi biwa obutuufu obw’amaanyi (0.02mm/m standard at Storaen), naye amaanyi gaabwe gali mu mbeera ez’enjawulo .:​

Kozesa eddaala ly’ebbaala ng’okola n’ebitundu ebiringa ssilindala, eggaali y’omukka enfunda, oba mu bifo ebifunda ng’ekintu ekitono ennyo we kyetaagisa.​
Weeroboze ku ddaala lya fuleemu (naddala ku ddaala lya fuleemu entuufu) ng’opima ebifo ebipapajjo, okukebera enkoona entuufu, oba okwetaaga okuddamu okw’omu kiseera ekimu okw’okwebungulula/okwekulukuunya mu misomo, ebifo ebizimbibwa, oba okuteekawo ebyuma bya CNC.​

4. Obukugu bwa Storaen mu biti byombi .​

Ku Storaen, tukola yinginiya w’emitendera gya bbaala olw’okwesigamizibwa okukaluba —emibiri gyabwe egy’ekyuma ekisuuliddwa giziyiza okukulukuta n’okukosebwa, ate V-groove eyitamu mu ngeri entuufu okukakasa nti etuukiridde mu ssiringi. Frame levels zaffe, omuli premium precision frame level series, zirina fuleemu za aluminiyamu ez’omutindo gw’ennyonyi n’enkola za dual-vial for unmatched multi-surface accuracy.​

Ka obe nga weetaaga okutambuza omutendera gw’ebbaala oba obusobozi obw’enjawulo obw’omutendera gwa fuleemu, ebikozesebwa eby’omutindo gwa Storaen eby’omutindo gw’amakolero bituusa obutuufu n’okuwangaala pulojekiti zo ze zeetaaga. Yeekenneenya range yaffe leero ozuule eky’okupima ekituufu ku nkola yo.

Omutendera gw’ebbaala ogw’obutuufu obw’amaanyi: 0.02mm/m Ebikwata ku butuufu

Ku Storaen, bbaala yaffe level series eddamu okunnyonnyola precision measurement ne industry-leading 0.02mm/m accuracy—engineered for tasks nga ne okukyama okusinga obutono kuyinza okukosa project success. Ensengeka eno etegeeza ekintu kyaffe kizuula okusitula kwa mmita 0.02 zokka mu buwanvu bwa mita 1, okuteekawo omutindo gw’okukwatagana okukulu mu nkola z’amakolero, okukola, n’okuddaabiriza.​

.​

Omutima gw’obutuufu bw’omutendera gw’ebbaala yaffe gwe kibya kyagwo ekipimiddwa mu ngeri ey’obwegendereza, ekizimbibwa n’endabirwamu ez’omutindo gw’amaaso n’amazzi agatebenkedde ebbugumu okukendeeza ku nsobi z’okugaziwa. Buli kibya kiyita mu nkola y’okupima ey’emitendera 3, okukakasa nti ekiwujjo kiwummudde ddala wakati ng’oludda luli bulungi mu bbanga oba nga beesimbye. Kino kimalawo okuteebereza, okuwa okusoma okutegeerekeka obulungi, okuddiŋŋana ne mu mbeera ezikyukakyuka.​

2. Base ya V-grooved ekoleddwa mu ngeri entuufu .​

Omutendera gwaffe ogw’ebbaala guliko ettaka erifaanana ng’ekisenge kya V okutuuka ku kugumiikiriza okw’omutendera gwa micron, okukakasa okukwatagana okutaliimu buzibu n’ebifo ebiringa ssilindala nga shaft z’ebyuma, payipu, oba ebiragiro by’eggaali y’omukka. Groove’s 120° angle and mirror-finish surface (RA ≤ 0.8μm) zimalawo okuseerera n’okupima obutakwatagana, ekigifuula ennungi ennyo okukebera ebigolokofu ku bikozesebwa ebyetooloovu, awali obutuufu obutateesebwako.

​
3. Okuzimba okukaluba okusobola okukola obulungi .​

Esangibwa mu mubiri ogw’ekyuma ekisuuliddwa nga gujjanjabiddwa mu bbugumu, omutendera gwaffe ogw’ebbaala guziyiza okugaziwa kw’ebbugumu n’okunyigirizibwa kw’ebyuma, okukuuma obutuufu bwa 0.02mm/m okubuna -10°C okutuuka ku 50°C ebbugumu. Enkola ya solid core ekendeeza ku kukankana okuva mu byuma by’amakolero, ate ekizigo ekiziyiza okukulukuta kw’amazzi (anti-corrosive enamel coating) kikuuma amafuta, okunyogoza, n’obunnyogovu, ekikulu ennyo mu butuufu obw’ekiseera ekiwanvu mu mbeera z’omusomo enkambwe.​

4. Okusaba awali obutuufu obusinga .​

Okuva ku kukwataganya ebiragiro by’ebikozesebwa mu kyuma kya CNC okutuuka ku kukakasa obugolokofu bw’ebidduka ebitambuza oba okuteekebwako payipu, omutindo gwaffe ogw’ebbaala ogw’obutuufu obw’amaanyi gutuwa obwesigwa obutakwatagana. Bayinginiya n’abakugu beesiga 0.02mm/m:​

Okuteekawo ekikozesebwa mu kyuma: Okukakasa nti spindle alignment okuziyiza workpiece defects .​
Okukebera ebitundu by’omu bbanga: Okukakasa okugumiikiriza kw’ekitundu eky’ekika kya cylindrical .​
Okuddaabiriza ebyuma ebizito: Okupima ebikondo bya ssilindala eby’amazzi okusobola okukola obulungi .​

5. Okwewaayo kwa Storaen eri obutuufu .​

Buli ddaala ly’ebbaala lireka ekkolero lyaffe nga lirina satifikeeti y’okupima erondoolebwa, nga ekakasa okugoberera omutindo gwa ISO 17025. Buli kikozesebwa tukiteeka mu kubala okw’omutindo ogw’obubonero 12, omuli okugezesa okupapajjo, okukebera okutebenkera kw’ebiwujjo, n’okutambula kw’ebbugumu, okukakasa nti ensengeka ya 0.02mm/m ekwata entuufu mu bulamu bwayo bwonna.​

Pulojekiti yo bw’esaba ebipimo osobola okussaako erinnya lyo, londa omutendera gw’ebbaala ya Storaen—nga obutuufu bwa 0.02mm/m si kunnyonnyola kwokka, wabula kisuubizo kya butuufu awatali kukkaanya.

Okukozesa Omutendera gw’Ebbaala: Okupima Ebintu Ebikolebwa mu Silingi & V-Grooves .

Mu kupima mu makolero, emitendera gya bbaala gisinga mu mirimu egy’obutuufu egyekuusa ku bifo ebiringa ssilindala n’ebizimbe ebiringa V —ekola dizayini yazo ey’enjawulo esinga ebikozesebwa eby’awamu. Ku Storaen, bbaala yaffe level series ekoleddwa yinginiya okusobola okukola ku kusoomoozebwa kuno n’obutuufu obutafaananako na bwesigwa, ekifuula okulonda okwagalibwa eri abakugu abakola n’ebintu ebikolebwa mu ssiringi, ebiragiro by’ebikozesebwa mu byuma, n’ebitundu ebirina V-Grooved.

1. Okukebera ekintu ekikolebwa mu ngeri ya cylindrical & straightness checks .

Ekintu ekitegeeza ku ddaala ly’ebbaala —omusingi oguliko V-grooved —etondawo enkolagana ennywevu, ennywevu nga erina ebitundu ebyetooloovu, nga .:

Machine Tool Shafts: Nga okwataganya CNC spindle shafts oba conveyor rollers, Storaen’s bar level ekakasa okudduka okutono nga ezuula micro-tilts (nga wansi nga 0.02mm/m) ku cylinder’s longitudinal axis. Enkoona ya V-groove 120° n’obutuufu-ettaka kungulu (RA ≤ 0.8μm) zituukana bulungi ne geometry ya cylindrical, okumalawo okuseerera n’okupima ensobi.

Okuteeka payipu: Mu nkola y’amafuta ne ggaasi oba amakolero, omutindo gwaffe ogw’ebbaala gukakasa obugolokofu bw’ebitundu bya payipu nga bikuŋŋaanyizibwa, okuziyiza obutakwatagana obuyinza okuleeta obutakola bulungi oba okunyigirizibwa kw’enzimba. Dizayini yaayo entono ekwata mangu mu bifo ebinywevu, ebikozesebwa ebinene ennyo we biremererwa okutuuka.

2. Okupima ekitundu kya V-groove .

Ebizimbe ebiriko V-Grooved —ebitera okubeera mu bikozesebwa, ebipima, n’enkola z’eggaali y’omukka —byetaagisa okukebera enkoona n’obuwanvu obutuufu. Storaen’s Bar Level esukkulumye wano:

Okugezesa V-Groove Squareness: Okuteeka omutendera okuyita mu V-grooves bbiri ezivuganya (okugeza, mu slayidi z’ebikozesebwa mu kyuma) kiraga okukyama okw’enjuba, okukakasa ebitundu bigatta bulungi ku ntambula ya layini eweweevu.
Aligning V-guided rails: Mu layini z’okukola mu ngeri ey’otoma, omutindo gwaffe ogw’ebbaala gukakasa nti eggaali y’omukka eriko V-guided are perfectly parallel, minimising wear on moving carriages and maintaining positional accuracy for robotic arms or material handlers.

3. Emirimu gy’emmotoka egy’obutuufu .

mu makolero awali okugumiikiriza okupimibwa mu microns .:

Automotive Assembly: Mu kiseera ky’okuteeka powertrain, ekintu kyaffe kikakasa nti camshafts ne crankshafts zikwatagana mu specification, okutangira ensonga z’omutindo ez’ebbeeyi wansi ku layini.

4. Lwaki emitendera gya Storaen Bar gikulembera mu kupima kwa ssiringi .

Emitendera gyaffe egy’ebbaala gigatta ebirungi bisatu ebikulu ku nkola zino .:

Okuzimba ekyuma ekisuuliddwa mu ngeri ey’ekibogwe: kugumira ebikosa n’okukyukakyuka kw’ebbugumu mu misomo emikambwe, okukuuma obutuufu okumala emyaka mingi nga bakozesa nnyo.
Ebidomola by’obuwunga eby’omutindo gw’amaaso: Waayo ebisomeddwa eby’amangu, ebitaliimu kubuusabuusa ne mu mbeera y’ekitangaala ekitono, ekikendeeza ku budde bw’okupima ebitundu 30% bw’ogeraageranya n’emitendera egy’enjawulo.
Okupima okulondoolebwa: Buli kikozesebwa kijja ne lipoota ekakasiddwa ISO 17025, okukakasa nti obutuufu bwayo obwa 0.02mm/m butuukana n’omutindo gw’ensi yonna ogw’emirimu emikulu.

Oba okwataganya ekikondo kimu oba okuddukanya ekifo ekizibu eky’amakolero, Storaen’s bar level etuwa obutuufu n’okuwangaala okwetaagisa okukuuma cylindrical workpieces ne V-grooved components munda mu tolerance. Weesige ekintu ekikoleddwa okusoomoozebwa okw’enjawulo okw’okupima ku ngulu okwetooloola, kubanga mu kukola, ekikonde ekisinga obutono kisobola okuleeta enjawulo esinga obunene.
