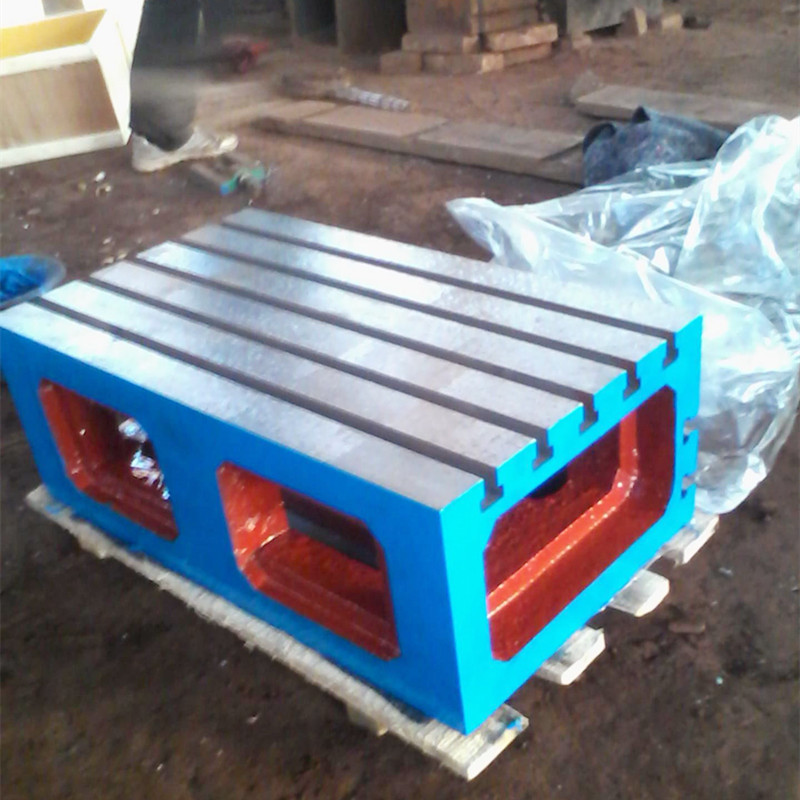

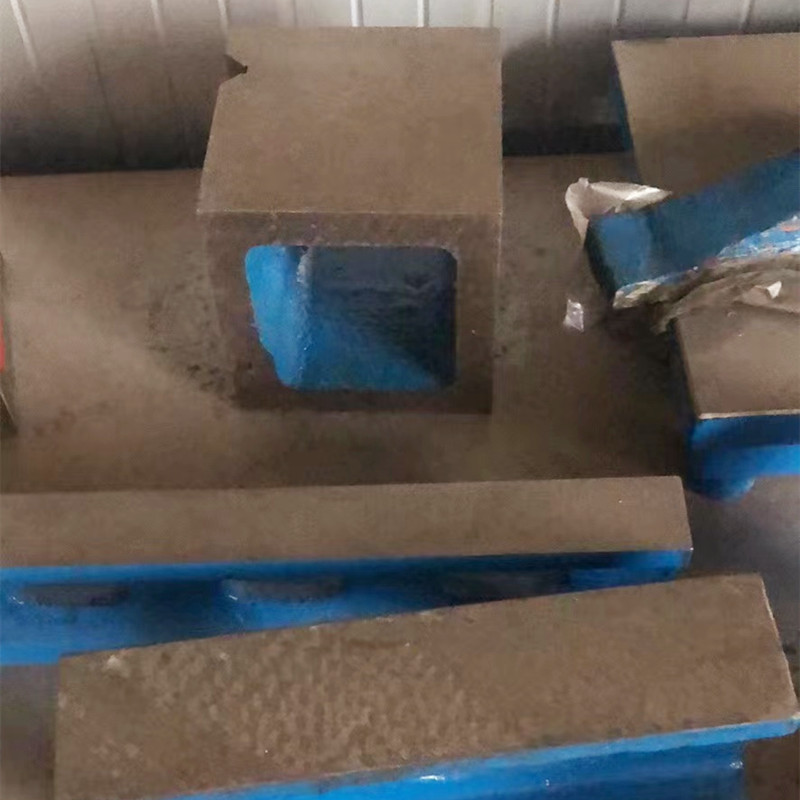

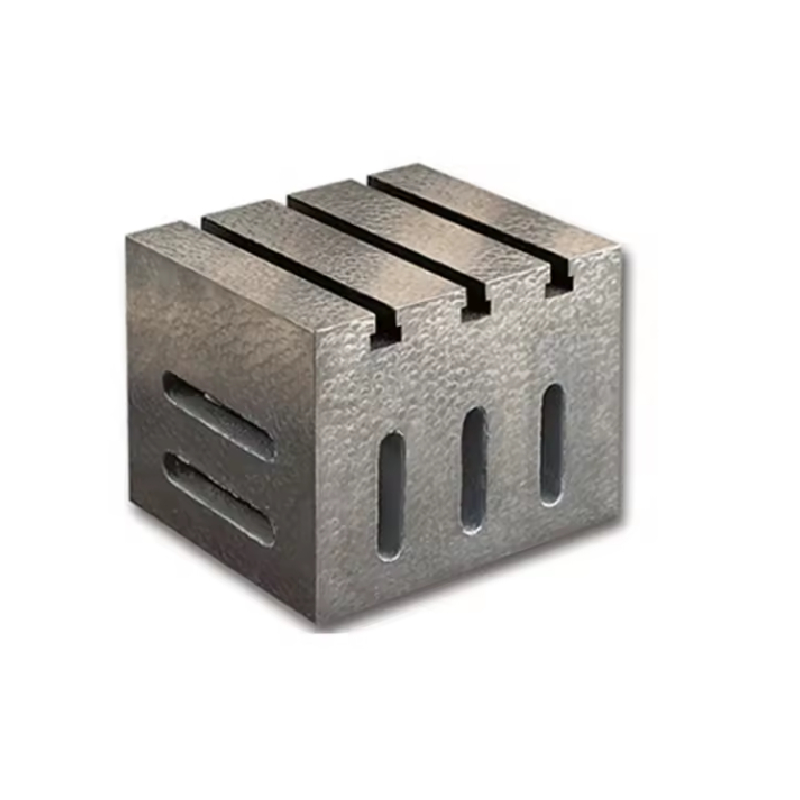

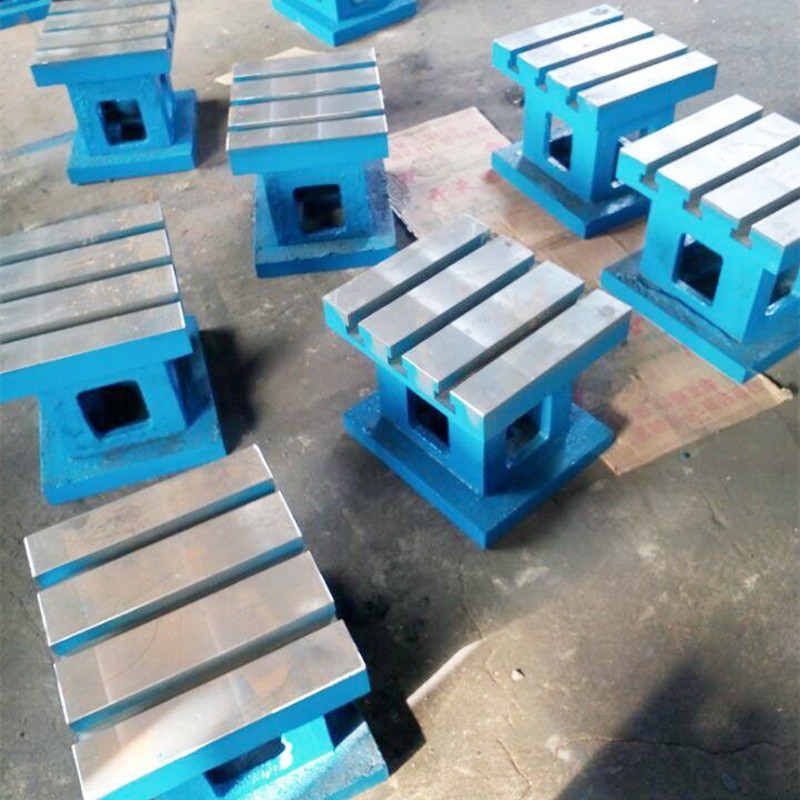

Ekibokisi kya Square eky’ekyuma ekisuuliddwa .

* Ekoleddwa mu kyuma ekisuuliddwa eky’omutindo ogwa waggulu.

* Ekolebwa mu bbugumu okusobola okukendeeza ku situleesi.

* Eweereddwa mu bibiina bibiri eby’okutuukiriza – Ebigezo: 2 & 3.

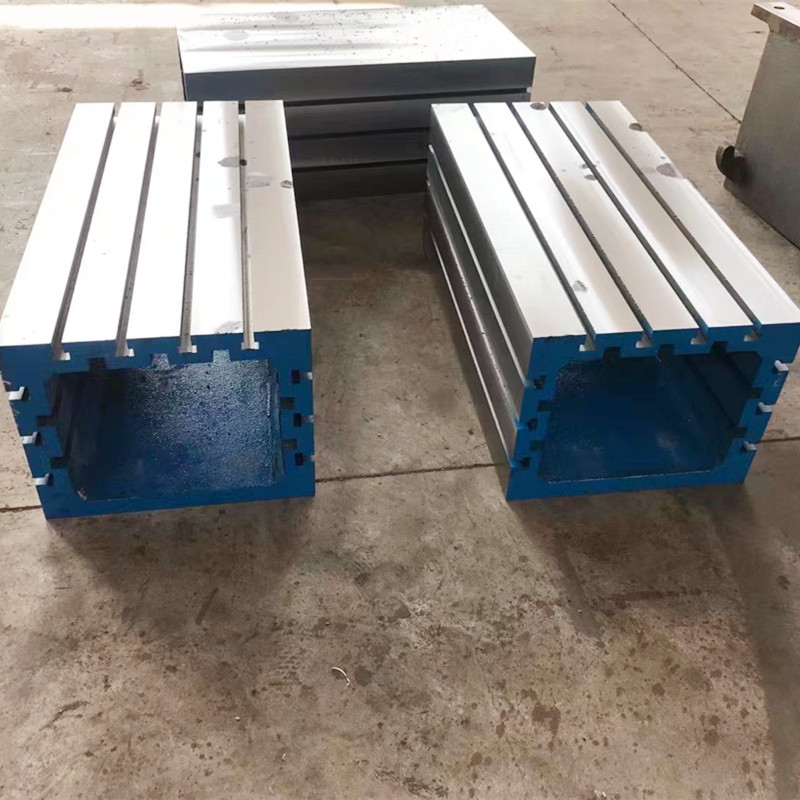

* t-slots ezikoleddwa mu kyuma ne cored as-cast slots eziweereddwa okusobola okwanguyiza clamping.

* Special sizes nga bwe buli kasitoma ky’ayagala ekigere nakyo kiweebwa.

• ewereddwa nga pair ekwatagana.

Ekifo we bava:Hebei, China .

Waranti:Omwaka1 .

Obuwagizi obukoleddwa ku bubwe:OEM, ODM, OBM

Erinnya ly’ekintu:Storan .

Ennamba y’omulembe:2009

Ebintu:Customized .

Obutuufu:Customized .

Enkola y’okukola:Emikono .

Obuzito bw’ekintu:Customized .

Obusobozi:Customized .

Ebikozesebwa:HT200-300 .

Specification:Customize .

Surface:Flat, T-slots ne cored nga-cast slots .

Obukaluba bw’ekifo ekikola:HB160-240 .

Enzijanjaba y’okungulu:Okukuba n’engalo oba okumalira mu kuzimba .

Foundry Process:Sand casting oba centrifugal castings

Ekika ky’okubumba:Resin omusenyu okubumba .

Okusiiga ebifaananyi:Primer ne Face Painting .

Surface coating:Okulonda amafuta ne pulasitiika oba okubikkibwako langi eziyiza okukulukuta .

Okupakinga:Plywood Box .

Obudde bw’okukulembera .

Eby’ekikugu ebikwata ku kyuma ekisuuliddwa mu square box .:

Ekyuma ekisuuliddwa Square Box Material: HT200-HT300 okusobola okuziyiza okwambala

Ebintu ebiri mu kisenge ekisuuliddwa mu square box bikwata butereevu ku buwangaazi bwakyo n’obutuufu —naddala mu mbeera z’amakolero enkambwe. Storaen elonda ekyuma ekisuuliddwa ekya HT200-HT300 ku kyuma kyaffe eky’ekyuma ekiyitibwa iron square box solutions, aloy ey’omutindo egeraageranya obugumu, okutebenkera, n’okuziyiza okwambala okusinga eby’okukozesa eby’omutindo. Laba engeri ekintu kino gye kikakasa nti ekintu kyo kigumira omusomo omukakali okukozesa .:

1. Obugumu obw’omutindo gw’amakolero okukozesebwa ennyo .

HT200-HT300 ekyuma ekisuuliddwa (160–240hb hardness) kikolebwa yinginiya olw’obugumu .:

Obuziyiza obw’okusika obw’ekika ekya waggulu: Microstructure yaayo eya luulu egaba obuziyiza bw’okwambala obulungi ebitundu 20% okusinga ebyuma eby’omutindo ogwa wansi, okukuuma ebifo ebiseeneekerevu (RA ≤1.6μm) okuyita mu 10,000+ clamping cycles. Kino kikulu nnyo ku bbokisi za square ez’ekyuma ekisuuliddwa ezikozesebwa mu kusiiga oba okusima, nga okukwatagana kw’ebikozesebwa buli kiseera kwandikoze ebintu ebigonvu.
Obuwagizi bw’emigugu emizito: Nga tulina amaanyi g’okusika 200–300MPa, ebifaananyi byaffe eby’ekyuma square box bikwata okutuuka ku kkiro 500 emigugu egy’obutakyukakyuka awatali kukyukakyuka —ekisinga okuwagira ebikozesebwa ebinene mu kiseera ky’okupima kwa 3D oba okukwatagana kw’ekyuma.

2. Okutebenkera kw’ebbugumu olw’obutuufu obutasalako .

Enkyukakyuka mu bbugumu (10°C–40°C) tezijja kukosa HT200-HT300’s precision .:

Obunywevu bw’ebipimo: Okugaziwa kw’ebbugumu okutono (11.6×10⁻⁶/°C) kukuuma ±0.02mm/m okugolokofu okusukka mm 1000, okukakasa okwesigika perpendicularity (90°±5’) n’ebipimo by’okufaanagana mu CMMS oba optical comparators.
Obujjanjabi obw’okukendeeza ku situleesi: A 550°C anneal emalawo ebitundu 90% ku situleesi y’okusuula, okuziyiza micro-cracks ezikendeeza ku buseere models mu bbanga.

3. Okukola emirimu gy’emikono kwongera ku mutindo gw’ebintu .

Enkola za Storaen zisinga HT200-HT300’s potential .:

resin sand casting: ekola obuwanvu bw’ekisenge ekimu (15–30mm) ne T-slots entuufu (obugazi bwa mm 14–24, ±0.1mm okugumira) olw’okusaasaanya omugugu ogukwatagana.
Optional hand-scraped finish: Okusobola okwekebejja okukulu, abakozi b’emikono balongoosa ebifo okutuuka ku 25+ contact points/25x25mm, okwongera ku kifo eky’okutwala emigugu ebitundu 30% n’okukendeeza ku kukyukakyuka kw’ebintu ebikolebwa—okutuuka ku kiraasi 0 flatness (≤0.0005mm/m) ku by’omu bbanga oba eby’obujjanjabi.

4. Enkola ekakakasiddwa mu mbeera ezisaba .

Our Iron Square Box Solutions Esinga Obutuufu Obukulu .:

Okukebera ebyuma ebizito: 300x300x300mm cast iron square box ewagira ebitundu bya yingini ya dizero ya kkiro 200 mu kiseera ky’okugezesa flatness, nga HT200’s vibration-dampening properties zikendeeza ku nsobi mu kupima.
CNC Machining Fixturing: HT300’s 240hb Hardness ewakanya okukosebwa kw’ebikozesebwa, okukuuma emirimu nga gikwatagana mu ±0.01mm ku complex part geometry mu mirimu gy’okusiba.

5. Ekisuubizo ky’ebintu Storaen: okuwangaala & okulongoosa .

Tailored to your needs: Londa HT200 okukozesebwa mu general oba HT300 ku loads ezisukkiridde, mu sayizi okuva ku 100x100mm bench models okutuuka ku 600x600mm industrial fixtures.
Omutindo gw’osobola okwesiga: Buli bbokisi etuukana n’omutindo gwa GB/T 4986-2004 ne ISO 8512-1, ekakasiddwa mu kukebera CMM, era nga ewagirwa ggaranti ya mwaka 1 ku bulema bw’ebintu.
Omuwendo ogw’ekiseera ekiwanvu: Ebika byaffe ebya HT200-HT300 biwangaala 3x okusinga bbokisi eza generic, okutuusa omugatte gw’ensimbi zonna awamu ez’obwannannyini ku maduuka nga geesigamye ku bikozesebwa ebyesigika eby’okunyweza.

Tokkaanya ku mutindo gw’ebintu ku bbokisi yo ey’ekyuma ekisuuliddwa. Storaen’s HT200-HT300 construction egatta obugumu, okunyweza ebbugumu, n’okukola precision okukakasa nti ekyuma kyo square box ekuuma obutuufu mu n’emisomo egisinga okukaluba. Okuva ku fixturing buli lunaku okutuuka ku kwekebejja okukulu, okulonda kwaffe ebintu kukakasa nti okuteeka ssente zo kuyimirira mu kugezesa obudde —okuwagirwa obukugu bw’omukozi w’ebikozesebwa mu makolero akulembedde. Weekenneenye range yaffe leero era olabe enjawulo premium cast iron gy’ekola.

Okumaliriza nga kukubiddwa n’emikono: ±5μm precision of cast iron square box for critical inspections .

Mu kupima n’okutereeza obulungi, okumaliriza kungulu kwa ssanduuko y’ekyuma ekisuuliddwa (cast iron square box) kuyinza okutegeeza enjawulo wakati w’ebiwandiiko ebyesigika n’ensobi ez’ebbeeyi —naddala mu makolero nga eby’omu bbanga, ebyuma eby’obujjanjabi, n’okukola mmotoka. Storaen egulumiza omutindo gw’okukebera n’ebyuma byaffe eby’ekyuma ebikuba bbookisi nga mulimu ebimaliriziddwa n’emikono, enkola evugirwa emirimu gy’emikono etuuka ku ±5μm precision nga tewali kugigeraageranya na byuma ebirala eby’oku ttaka. Laba engeri eno premium finish gy’ekyusaamu ebikozesebwa ebya bulijjo mu precision instruments .:

1. Obukugu mu kusenya n’emikono: Beyond Machine Grinding .

ate okusiiga ebyuma kuvaamu ebitundu ebikkirizibwa (RA ≤1.6μm), okwekebejja okukulu kwetaaga okutuukiridde okutonotono .:

Micro-contact optimization: abakugu mu by’emikono basika buli ngulu mu ngalo okukola ekisenge kya 25–30 precision contact points buli 25x25mm, nga kyongera ku load-bearing area ne 30%. Kino kikendeeza ku kukyukakyuka kw’ekitundu ky’okukola wansi w’emigugu gya kkiro 200, okukakasa okugumira okupapajjo okwa kiraasi 0 (≤0.0005mm/m)—essential for verifying perpendicularity (90°±5’) ne parallelism (≤0.01mm/m) mu coordinate measuring machines (CMMS).
Okuggyawo obutali butuukirivu: Okwawukana ku grinders ezireka okunyigirizibwa okusigadde oba micro vibrations, okusika mu ngalo kuggyawo ensobi zino, okutuusa kungulu so uniform it serves as a reference standard for dimensional metrology labs.

2. Ebintu & enkola synergy for lasts precision .

Storaen’s Cast Iron Square Box Enkola y’okusika emikono n’emikono etandika ne HT200-HT300 ekyuma ekisuuliddwa eky’enzirugavu (180–240hb hardness):

scrapability excellence: Enzimba ennungi ey’ekyuma kyaffe ekisuuliddwa ekkiriza okusala ku bbalaafu okutuufu, okusobozesa abakozi b’emikono okulongoosa ebifo okutuuka ku ±5μm flatness mu buwanvu bwa mm 300 —obulungi bw’ebikozesebwa mu kugeraageranya ekyuma kya square box ebikozesebwa mu nsengeka z’okugerageranya ez’amaaso oba okupima okuziyiza kwa gage.
Obugumu bw’ebbugumu: nga bigattiddwa wamu ne 550°C stress-relief anneal (okumalawo 90% ku casting stress), okumaliriza okukubiddwa n’engalo kuziyiza okuwuguka mu 10°C–40°C embeera, okukuuma obutuufu okumala emyaka mingi nga bakozesa nnyo.

3. Okukozesa nga buli micron ebala .

Ebintu byaffe ebikubiddwa n’emikono ebya Square Box Solutions bisukkulumye mu mbeera ezirimu emigabo mingi:

Okukebera ebitundu by’omu bbanga: 400x400x400mm ekyuma square box ekakasa ≤0.005mm deviation nga okakasa perpendicularity ya jet engine mounting brackets, ekikulu mu kukuŋŋaanya okutaliimu kukankana.
Okukola ebyuma eby’obujjanjabi: Mu kulongoosa ebikozesebwa mu kulongoosa, ±5μm precision of our hand-scraped surfaces ekakasa enkoona ezitakyukakyuka ez’okusima orthopedic implants, okukendeeza ku scrap rates ne 20%.
Automotive Quality Control: Ekozesebwa okupima emikono gya roboti mu kukuŋŋaanya okutambuza, bbokisi zaffe zikuuma parallelism mu 0.01mm/m, nga zitangira okutabula okusaasaanya ssente mu kukola emirimu egy’amaanyi.

4. Storaen’s Edge: Obukodyo bw’emikono busisinkana yinginiya .

Okulongoosa awatali kukkaanya: londa okuva mu sayizi eza bulijjo (100x100mm–600x600mm) oba saba ebipimo eby’enjawulo—buli bbokisi ya Square eyaka esika n’engalo eyitamu 3D laser scanning okukakasa nti egoberera GB/T 4986-2004 ne ISO 8512-1.
Obuwangaazi obuzimbibwamu: Okumaliriza amafuta agaziyiza okukulukuta kwa 5μm kukuuma kungulu okuva ku kuyonja n’obunnyogovu, okugaziya obulamu bw’ebikozesebwa byaffe ebya Iron Square Box by 2X bw’ogeraageranya n’abavuganya abatasiigiddwa mu mbeera enzibu.
Obwesigwa bw’osobola okwesiga: nga buwagirwa ggaranti ey’omwaka 1 okulwanyisa okwambala kungulu oba okuwuguka kw’ebipimo, ebikozesebwa byaffe ebikutuddwa n’emikono bituusa emirembe mu mutima okwekebejja ng’okulemererwa si kya kukola.

Okukebera okukulu bwe kwetaaga sub-micron precision, weesige Storaen’s hand-scraped ekyuma ekisuuliddwa square box solutions. Ebisinga ku bikozesebwa byokka, biba bya bukugu mu by’emikono ne yinginiya w’amakolero, ebikoleddwa okutuukiriza omutindo omukakali ogw’amakolero ag’omulembe. Noonyereza ku bbanga lyaffe leero era ozuule engeri ±5μm precision gy’esobola okusitula okufuga omutindo, fixturing, n’okupima enkola —okuwagirwa okwesigika kw’akabonero akategeera omugaso gw’obutuukirivu.

• •
