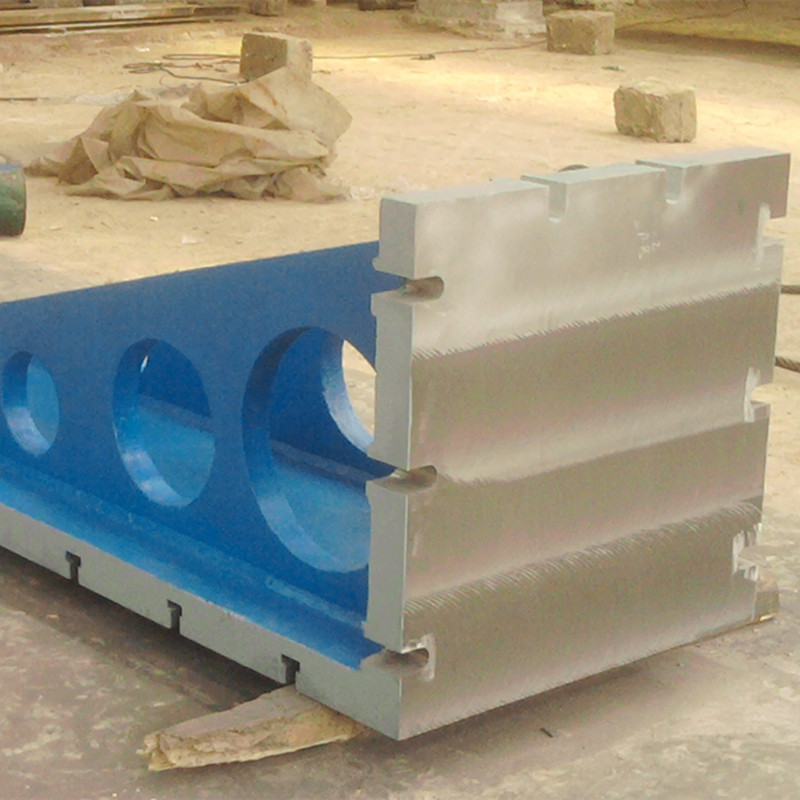

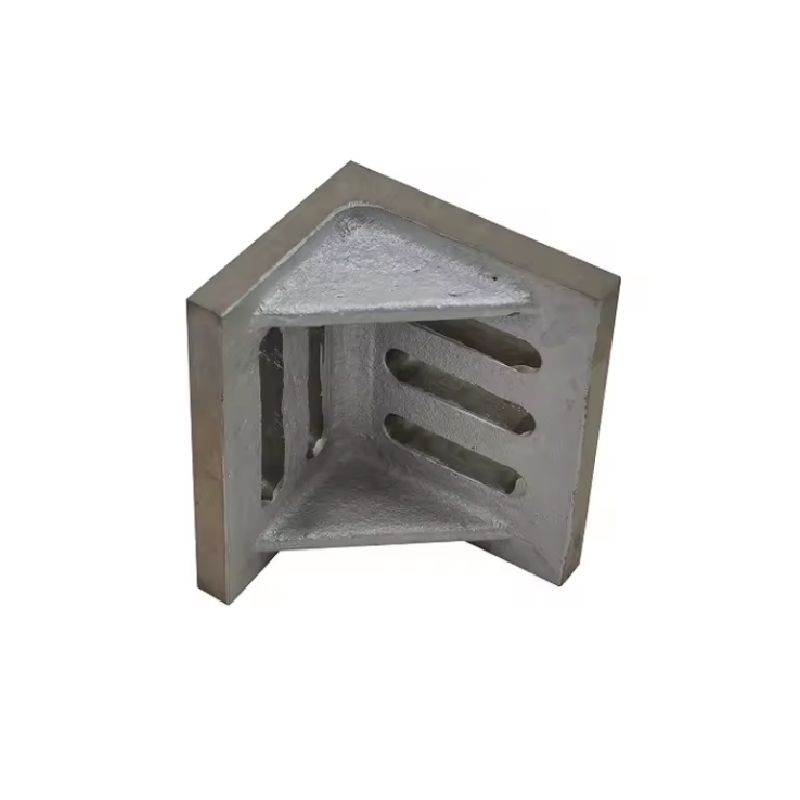

Ekyuma ekisuuliddwa angle plates .

Product code: ekyuma ekisuuliddwa ekifukamidde, T-groove ekyuma ekisuuliddwa ekibikka, okwekebejja ekyuma ekisuuliddwa okufukamira pulati

Ebirungi ebiri mu pulati z’ekyuma ekisuuliddwa (cast iron bending plates) biba bituufu nnyo, okuziyiza okwambala obulungi, n’okuddaabiriza okwangu.

Ebyafaayo by’ekyuma ekikuba ebyuma ebisuuliddwa: 200 × 200~800 × 600 (Millimeters) Obutuufu: Omutendera 0, Omutendera 1, Omutendera 2, Omutendera 3.

Ebyuma ebifumbiddwa mu kyuma ekisuuliddwa bikolebwa okusinziira ku mutindo gwa JB6092-85, nga bikoleddwa mu kintu kya HT200-HT300. Ekifo we kikolera kikwata tekinologiya w’okusika n’okusenya, nga kino kikozesebwa okukebera ebitundu n’okukwata mu kulongoosa ebyuma.

Okukozesa ekyuma ekikuba ebyuma ebisuuliddwa: Ekozesebwa okwekenneenya 90 ° angle of workpieces, okukebera buli omu perpendicularity of related surfaces of components mu kiseera ky’okulabirira ebyuma, era era etera okukozesebwa okussaako obubonero nga fitters. Era esobola okukozesebwa ennyo okwekebejja, okuteekebwa, n’okukebera ku ngulu mu ngeri ey’okwesimbye, era esobola okukebera ennyiriri z’ebintu ebikolebwa ku kyuma ekisuuliddwa (cast iron flat plates). Kisaanira okwekebejja n’okukebera ebikozesebwa mu ngeri ey’ekikugu ennyo n’okukebera obutali bwa vertikal wakati w’ebikozesebwa mu byuma.

Ekifo we bava:Hebei, China .

Waranti:Omwaka1 .

Obuwagizi obukoleddwa ku bubwe:OEM, ODM, OBM

Erinnya ly’ekintu:Storan .

Model Number:2012

Ebintu:Customized .

Obutuufu:Customized .

Enkola y’okukola:Emikono .

Obuzito bw’ekintu:Customized .

Obusobozi:Customized .

Product Name:Ekipande ky’ekyuma ekibuuzibwa .

Ebikozesebwa:HT200-300 .

Size:Customized .

Obukakanyavu bw’ekifo ekikola:HB160-240 .

Enkola y’okufumbisa:Resin Sand Casting .

Enzimba:Customized .

Okusiiga langi:Primer ne Face Paint .

Precision Grade:1-3.

Ebbugumu ly’okukola:(20±5.) ℃

Okupakinga:Plywood Box .

Obudde bw’okukulembera .

Ebikozesebwa: HT200-300

Ebikwata ku nsonga: Customize .

Obukakanyavu bw’ekifo ekikola: HB160-240 .

Okulongoosa kungulu: Okusenya, Okumaliriza ettaka oba Okumaliriza mu kyuma .

Enkola y’okufumbisa: resin sand casting .

Okusiiga ebifaananyi: primer ne face painting .

Okusiiga kungulu: Ekifo ekikola nga kibikkiddwako amafuta agasiigiddwa n’ekifo ekitakola nga kibikkiddwako langi eziyiza okukulukuta .

Ebbugumu ly’okukola: (20±5.) ℃

Ekigero ky’obutuufu: 1-3.

Okupakinga: Ekibokisi kya Plywood .

Dizayini y’okuddaabiriza ekyuma ekisuuliddwa mu ngeri etali ya kuddaabiriza wansi: HB160-240 Obugumu eri obulamu obuwanvu

Mu industrial fixturing, cast iron angle plates zirina okugumira enkozesa enzito awatali kuddaabiriza nnyo. Storaen leverages HT200-HT300 grey cast iron (HB160-240) okukola angle plate casting solutions ezikendeeza ku ndabirira —ezisinga obulungi mu misomo awali ekiseera ky’okukola ekintu eky’ebbeeyi. Laba engeri dizayini yaffe gy’ekakasaamu okuwangaala n’obwangu:

1. Obukakanyavu ku kwambala & impact resistance .

Ebintu byaffe ebisuuliddwa box angle plate models (160–240hb) Outlast soft materials by 2x .:

Okuziyiza okusika: Microstructure ya Pearlitic egumira enzirukanya z’okukwata 10,000+ awatali kufiirwa 90° square (±5’ tolerance), ekikulu ennyo mu kusiiga/okusima ebikozesebwa nga buli kiseera kikwatagana n’ekintu eky’okwonoona eby’okuziyiza okutono.
Impact Resilience: Amaanyi g’okusika kwa 200–300MPa gakwata okukosebwa okutono, okwewala ebituli/enjatika ezibonyaabonya obupande bwa aluminiyamu era nga bwetaaga okuddaabiriza emirundi mingi.

2. Okutebenkera okuwona situleesi .

Enkola ey’emitendera ebiri ekakasa obutuufu obw’olubeerera .:

resin sand casting: ebisenge ebifaanagana (15–30mm) ne 550°C annealing bimalawo ebitundu 90% eby’okunyigirizibwa kw’okusuula, okuziyiza okuwuguka. Ekuuma kiraasi 2 flatness (≤0.02mm/m) okusukka 600mm, stable across 10°C–40°C.
Okumaliriza ku ngulu okuwangaala: okusiigibwa (RA ≤3.2μm) kuziyiza okuzimba kw’amazzi agayonja; Okusenya n’emikono egy’okwesalirawo (RA ≤1.6μm) tekyongera ndabirira yonna —obutafaananako bizigo ebisekula ku bipande ebya layisi.

3. Okufuga okukulukuta & okusika .

Ebintu ebitali bya kuddaabiriza nnyo embeera enkambwe .:

Obukuumi obw’obutonde: Ekyuma ekisuuliddwa ekinene kikendeeza ku busagwa ebitundu 50% vs. ekyuma; 5μm Okusiiga amafuta agasiigiddwa kigaziya okuziyiza mu misomo egy’obunnyogovu.
Graphite eyeesiiga: Ekendeeza okusikagana wakati w’epulati n’ebintu ebikolebwa, okumalawo obwetaavu bw’okusiiga amafuta emirundi mingi —okutera n’ebintu ebirala.

4. Okukozesa obwetaavu obw’amaanyi .

Ekakasibwa mu mbeera enzibu .:

Ebyuma ebizito fixturing: 600x400mm cast iron angle plate ewagira 300kg engine blocks buli lunaku okumala emyaka 5+ awatali kuvunda, okukekkereza $2,000+ mu ssente z’okuddamu okukola buli mwaka.
Okukebera mu ngeri ey’otoma: HB180 ku ngulu okutebenkedde ekuuma 90° alignment (±10") mu robotic CMM setups, okusala calibration frequency ne 75% n’okutumbula throughput.

5. Ekisuubizo kya Storaen eky’okuddaabiriza .

Dizayini ewangaala: Okuva ku 200x200mm bench okutuuka ku 800x600mm Industrial models, tewali bitundu bifu oba ebizigo ebizibu.
Okukakasa omutindo: Etuukana n’omutindo gwa GB/T 6092-85/ISO 1101, ng’ewagirwa ggaranti y’omwaka 1 ng’ewakanya okufiirwa oba okuwuguka kw’obukaluba.
Enkizo y’obuwangaazi: Obulamu bw’obuweereza bwa 3X obwa generic plates, okukkakkanya omuwendo gwonna ogw’obwannannyini olw’okufulumya okwesigika.

Londa Storaen’s cast iron angle plates for obuzibu obutaliimu buzibu. Ebintu byaffe ebisuuliddwa box angle plate solutions bigatta HB160-240 obugumu, okusuula okutaliimu situleesi, n’okuziyiza okukulukuta okutuusa omulimu ogw’ekiseera ekiwanvu nga tewali ndabirira ntono. Essira lisse ku nkola yo ey’emirimu —tujja kukwata obuwangaazi.

Cast iron angle plate Applications: Okukola ebinyweza & 90° Squareness Check

Mu kukola precision, cast iron angle plates zeetaagisa nnyo okusobola okunyweza okunyweza n’obutuufu bwa geometry, naddala nga 90° squareness kikulu nnyo. Storaen’s angle plate casting solutions ziwa obugumu n’obuwangaazi okusukkuluma mu mirimu ebiri emikulu: okukola fixture n’okukebera square.

1. Okukola fixture: Precision positioning for machining .

Storaen’s cast iron angle plates zikola emisingi egyesigika egy’okunyweza ekitundu ky’okukola:

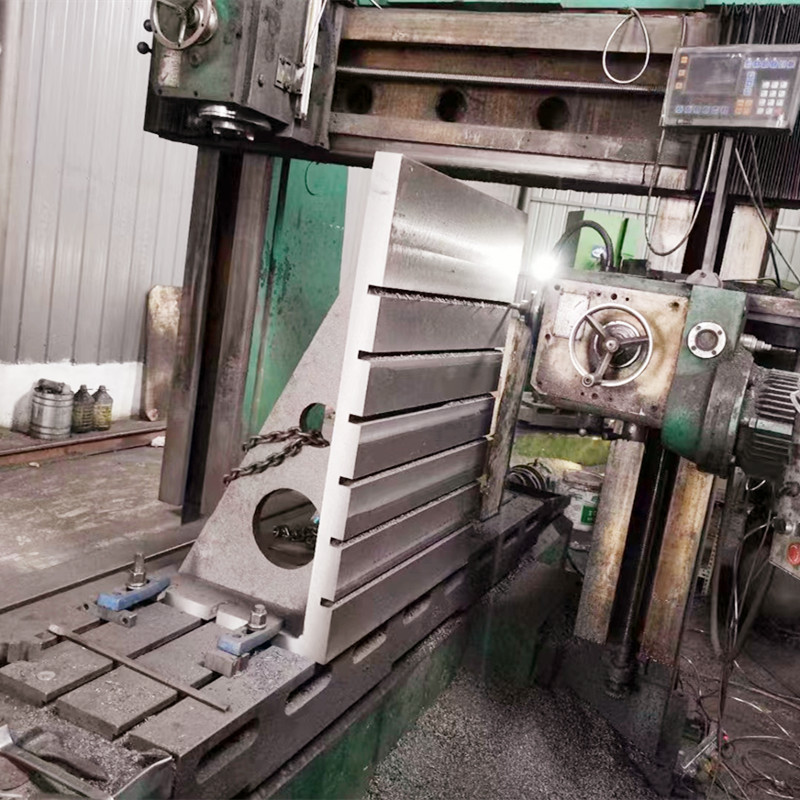

Okutebenkera kw’emirimu egy’amaanyi: Ekoleddwa mu kyuma ekisuuliddwa ekya HT200-HT300 (160–240hb), zigumira emigugu gya kkiro 200 200 awatali kukyukakyuka —ekisinga obulungi ku CNC Milling Automotive Transmission Housings. A 400x300mm ekyuma ekisuuliddwa box angle plate ekakasa ebituli ebisimiddwa bikuuma bulungi 90° nga bikwatagana n’ebitundu ebigatta, ekikendeeza ku nsobi z’okunyweza.
Modular T-Slot Design: Standard 14–24mm T-slots (±0.1mm tolerance) bakkiriza ebikwaso eby’amangu n’ebiraga, okusala obudde bw’okuteekawo ebitundu 50% bw’ogeraageranya n’ebintu ebikozesebwa mu byuma eby’enjawulo. Kino versatility kituukana n’amaduuka g’emirimu nga kikwata ku yingini, vvaalu, n’ebitundu bya roboti nga biriko plate emu eya 600x400mm.

2. 90° Squareness Check: Okukakasa obulungi bw’ebyuma .

Ku lw’okukakasa okw’amaanyi (critical perpendicularity verification) .:

CMM Calibration: Class 0 Cast Iron Box angle plates (≤0.0005mm/m flatness) zikola ng’omutindo gw’okujuliza ogw’okukebera ebitundu by’omu bbanga, nga jet engine brackets, okukakasa 90° angles within ±5" okuziyiza okukoowa okukankana.
Ekyuma okulaganya ekintu: 300x200mm cast iron angle plate ekakasa spindle verticality mu lathes/mills okutuuka ku ISO 1101, okukendeeza ku tool wear ne 15% n’okulongoosa kungulu okumaliriza (RA ≤1.6μm) mu kusala ebyuma ebizito.

3. Storaen’s design enkizo ku byetaago by’amakolero .

Ekintu ekikyusa okukankana: ekyuma ekisuuliddwa HT200-HT300 kikendeeza ku nsobi mu kupima ebitundu 40% mu misomo egy’amaloboozi, okukuuma squareness mu kiseera ky’okukola ebyuma obutereevu.
Custom Solutions: Bespoke 800x600mm plates with reinforced ribs for stamping fixtures ziweebwa mu wiiki 4–6, nga zilongoosa ensaasaanya y’emigugu okukozesebwa emirimu egy’amaanyi.
Okukakasa omutindo: Buli ssowaani esisinkana GB/T 6092-85/ISO 1101 ng’eyita mu kugezesebwa kwa CMM, nga erina warranty ya mwaka 1 ku square drift okukola emirimu egy’amaanyi.

4. Industry Impact: Efficiency & accuracy .

Automotive: Omugabi wa Tier 1 akozesa angle plate yaffe casting ku fixture cylinder emitwe, okutuuka ±0.01mm perpendicularity n’okumalawo okuddamu okukola yingini.
Aerospace: ekyuma ekisuuliddwa box angle plates zikakasa ebituli by’embavu z’ebiwaawaatiro bikwatagana ne fuleemu za fuselage, okusala obudde bw’okukuŋŋaanya ennyonyi ebitundu 30%.

Storaen’s cast iron angle plates ziwa amaanyi mu kukebera fixturing ne squareness. Engineered for heavy loads and repeatable accuracy, angle plate casting solutions zaffe zikendeeza ku budde bw’okuteekawo, okutumbula obulamu bw’ebikozesebwa, n’okutuukiriza omutindo gw’amakolero ogusinga obukakali, nga guwagirwa ekika ekyewaddeyo okukola obulungi.
